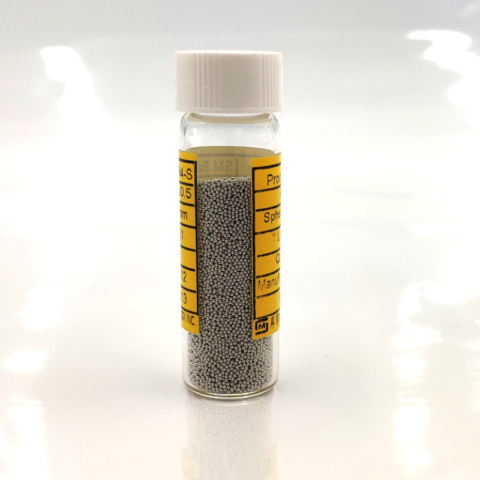

PF685-S SOLDER BGA SPHERE
Product description
Alloy: Sn/Ag4.0/Cu0.5
Melting point: 217 – 219 °C
Sphere diameter: 0.05 – 0.76 mm
Sphere diameter tolerances
| Level | Diameter (mm) | Tolerances (mm) |
|---|---|---|
| Solder Sphere | 0.5 – 0.76 | ±0.02 |
| 0.3 – 0.49 | ±0.01 | |
| 0.1 – 0.29 | ±0.005 | |
| Micro Solder Sphere | 0.05 – 0.095 | ±0.003 |
AVAILABLE OPTIONS FOR SOLDER BGA SPHERES
If interested, please contact us for a specific offer.
| Name | Alloy Composition | Melting Point (°C) |
|---|---|---|
| BGA Series | ||
| PF682-S | Sn/Ag1.2/Cu0.5+Ni | 217-227 |
| PF683-S | Sn/Ag1.0/Cu0.5 | 217-227 |
| PF684-S | Sn/Ag3.0/Cu0.5 | 217-219 |
| PF685-S | Sn/Ag4.0/Cu0.5 | 217-219 |
| PF687-S | Sn/Ag3.5 | 220-222 |
| PF698-S | Sn/Ag2.6/Cu0.6 | 217-219 |
| PF906-S | Sn/Ag4.0/Cu0.5+Bi | 210-217 |
| PF908-S | Sn | 230-233 |
| PF909-S | Sn/Ag3.0/Cu0.5+Bi | 210-217 |
| PF912-S | Sn/Ag2.0/Cu0.5+Bi | 210-225 |
| PF623-S | Sn/Sb5.0 | 238-241 |
| Low Temperature BGA Series | ||
| PF602-S | Sn/Bi58 | 139 |
| PF653-S | Sn/Bi57/Ag1.0 | 137-142 |
| PF676-S | Sn/Bi57.6/Ag0.4 | 137-142 |
| PF713-S | Sn/Bi17/Vu0.5 | 184-209 |
| PF714-S | Sn/Bi35/Ag1.0 | 138-187 |
| PF734-S | Sn/Bi40/Ag/X | 137-170 |
| PF735-S | Sn/Bi57/Ag/X | 137-142 |
| PF743-S | Sn/Bi48/Ag/X | 137-155 |
